Taper Turning Attachment with Live Centre (2MT, 3MT or 4MT)
- SKU:
- TTLC-01
- Availability:
- If in stock (Please see below price for current stock level) - Ships same day if ordered between Monday-Friday & before 3.30PM Victorian time.
- Shipping:
- Calculated at Checkout
$154.95
Frequently bought together:
Description

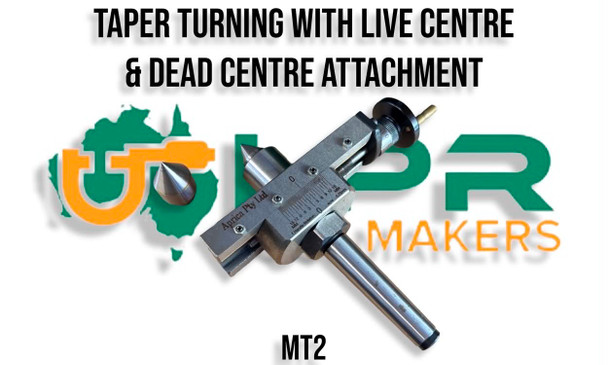

Taper Turning Attachments with Live Centre
Available in 2MT - 3MT -4MT
Simply select your MT up the top - Please see Unit capabilities below
| Morse Taper | Slide Capacity Left/Right | LIVE CENTRE ATTACHMENT | DEAD CENTRE ATTACHMENT |
| MT2 | 15MM | YES | YES |
| MT3 | 15MM | YES | YES |
| MT4 | 25MM | YES | NO |
- GIVES YOU THE FREEDOM FROM OLD TRADITIONAL METHOD OF OFF-SETTING THE TAILSTOCK OF YOUR LATHE , WHEN YOU WANTED TO DO THE METAL TURNING IN A TAPER PROFILE.
- IT COMES WITH A DOUBLE BEARING REVOLVING LIVE
- UNLIKE PAST DESIGNS, THIS ATTACHMENT HAS A MUCH BETTER CONTROL , PRECISION AND QUALITY.
- 1 HANDLE ROTATION WILL OFF SET THE ATTACHMENT BY 1 MM.
NEW ITEM EASY METHOD TO MACHINE TAPERS WITHOUT UPSETTING THE TAIL STOCK
Made from hardened chrome steel.
