5pc QUICK CHANGE TOOL POST SYSTEM

T3 MODEL

WILL THIS FIT MY LATHE?

The easiest wat is to measure your 4 way Tool post block from the top to bottom. If the height is within 10mm either side of 95mm (This Blocks height) then this unit will suit.

Suits lathes up from 36" to 48" between centres.

• This System is ideal for 1000mm to 1500mm between centre lathes or centre height from 203 to 292mm.

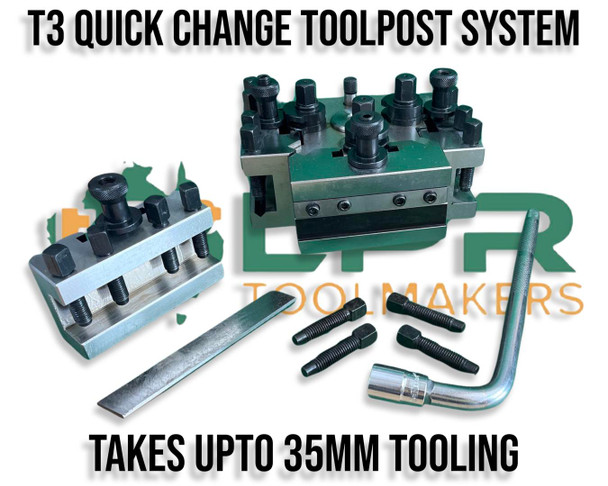

Our T3 System comes with the following:

2 x Standard Holders (THAT TAKE UP TO 35mm TOOLING)

1 x Vee Grooved Holder (WHICH WILL HOLD ROUND OR SQUARE TOOLING)

1 x PARTING TOOL TAKES HSS BLADES (included)

1 x Spanner

Key Dimensions:

Main Block Dimensions: 125mm (W) × 125mm (D) × 95mm (H)

25.4mm Bore in Middle which can be Bushed to suit your machine

 Centre of Tool post block has a 50mm removable spigot with 16mm through bore.

The tool holders have a 35mm opening

HOLDERS: 126x50x72mm HIGH

We stock spare Holders for this Tool post system T3 HOLDERS please checkout our store.

SUIT LATHES  SUCH AS COLCHESTER MASCOT 1600, HARRISON M450 AND OTHE SIMILAR
SIZED MACHINES

THIS IS A VERY ROBUST QUALITY SYSTEM

PACKED WEIGHT IS 22KG - SENT VIA AUSTRALIA POST W/ SIGNATURE
