5pc QUICK CHANGE TOOL POST SYSTEM

T2 MODEL

PACKED WEIGHT IS 12KG - SENT VIA AUSTRALIA POST W/ SIGNATURE

WILL THIS FIT MY LATHE?

The easiest wat is to measure your 4 way Tool post block from the top to bottom. If the height is within 10mm either side of 72mm (This Blocks height) then this unit will suit.

Suits lathes up from 36" to 48" between centres.

• This System is ideal for 1000mm to 1500mm between centre lathes or centre height from 127 to 203mm.

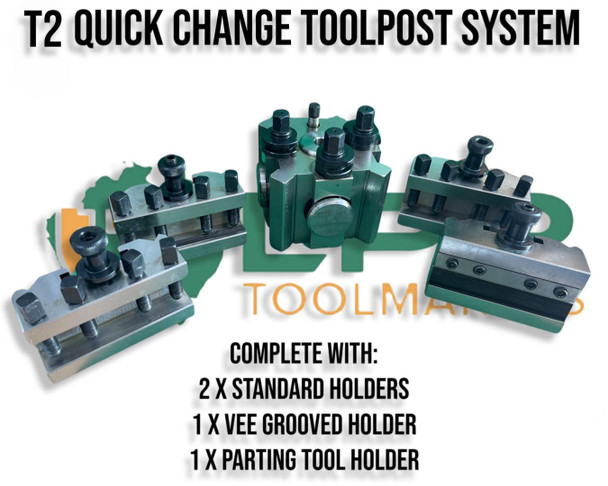

Our T2 System comes with the following:

2 x Standard Holders (THAT TAKE UP TO 25mm /1" TOOLING)

1 x Vee Grooved Holder (WHICH WILL HOLD ROUND OR SQUARE TOOLING)

1 x PARTING TOOL TAKES HSS BLADES (included)

1 x Spanner

Key Dimensions:

Main block is 72mm High

Internal Bush is 38mm.

 The centre bore is 16mm which can be Bushed to suit your machine

The tool holders have a 27mm opening which is ideal for 1" or 25mm shank Tools.

Bottom Tool Post has a 45mm counter bore 10mm deep

HOLDERS: 95x40x50mm HIGH

We stock spare Holders for this Tool post system T2 HOLDERS please checkout our store.

SUIT LATHES  SUCH AS COLCHESTER MASCOT 1600, HARRISON M450 AND OTHE SIMILAR
SIZED MACHINES

THIS IS A VERY ROBUST QUALITY SYSTEM
